This is a writeup of Flippin Bank crypo challenge in HackTheBox.
Foothold

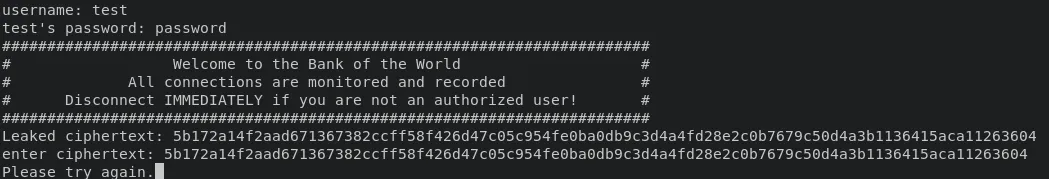

When I connect to the instance using the nc command, I am prompted to enter my username and password. After entering them, a leaked ciphertext is displayed, and I am asked to input another ciphertext. I copy the leaked ciphertext and paste it there, but I receive an error message saying “Please try again”. It appears that the ciphertext I entered was incorrect.
Let’s take a look at app.py file that I downloaded from the challenge page.
Within the file, it decrypts the cipher text and checks if the plain text includes “admin&password=g0ld3n_b0y”.
If this string is included, the app displays the flag.
try:
check = decrypt_data(enc_msg)
except Exception as e:
send_msg(s, str(e) + '\n')
s.close()
if check:
send_msg(s, 'Logged in successfully!\nYour flag is: '+ FLAG)
s.close()
else:
send_msg(s, 'Please try again.')
s.close()
def decrypt_data(encryptedParams):
cipher = AES.new(key, AES.MODE_CBC,iv)
paddedParams = cipher.decrypt( unhexlify(encryptedParams))
if b'admin&password=g0ld3n_b0y' in unpad(paddedParams,16,style='pkcs7'):
return 1
else:
return 0The leaked cipher text is a encrypted text of msg string where input username and password are combined like this below.
msg = 'logged_username=' + user +'&password=' + passwdThat means, if I leak a cipher text including “admin&password=g0ld3n_b0y”, I can input it and gets the flag.

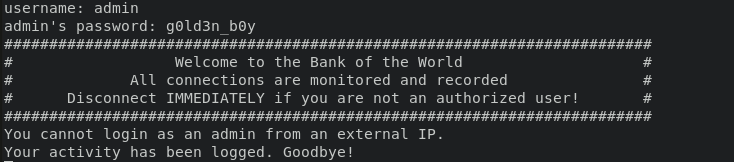

Let’s input “admin” as the username and “g0ld3n_b0y” as the password. However, The app exits before it leak the cipher text.
The reason is below. Before the app encrypts msg string and leaks it, the app checks if msg includes “admin&password=g0ld3n_b0y”.
If this string is included, the app exits.
Now I understand how the app works. The challenge is that I have to somehow create a cipher text including “admin&password=g0ld3n_b0y”.
try:
assert('admin&password=g0ld3n_b0y' not in msg)
except AssertionError:
send_msg(s, 'You cannot login as an admin from an external IP.\nYour activity has been logged. Goodbye!\n')
raiseLet’s look at how the app encrypts and decrypts a plain text. The app uses AES-CBC with PKCS7 padding. The initial vector and secret key are initialized when the app starts running.
from Crypto.Cipher import AES
from Crypto.Util.Padding import pad,unpad
def encrypt_data(data):
padded = pad(data.encode(),16,style='pkcs7')
cipher = AES.new(key, AES.MODE_CBC,iv)
enc = cipher.encrypt(padded)
return enc.hex()Padding oracle attack
After I google a bit, I found one famous attack against AES-CBC with PKCS7 padding encryption, which is called Padding oracle attack.
In cryptography, a padding oracle attack is an attack which uses the padding validation of a cryptographic message to decrypt the ciphertext.
Padding oracle attacks can be used when the following conditions are met:
- Symmetric encryption with a block cipher: The target system must be using a symmetric encryption algorithm in block cipher mode, such as AES-CBC or DES-CBC.
=> the app uses
AES-CBCencryption. - Vulnerable padding scheme: The target system must be using a padding scheme, such as PKCS7, that is susceptible to padding oracle attacks.
=> the app uses
PKCS7padding. - Leaky padding validation: The target system must provide an “oracle” that leaks information about whether the padding of a manipulated ciphertext is valid or not.
- Ability to send ciphertext multiple times: The attacker must be able to send ciphertext multiple times to the target system. => I can send cipher text multiple times.
So, I don’t know yet if the app satisfies the condition 3.

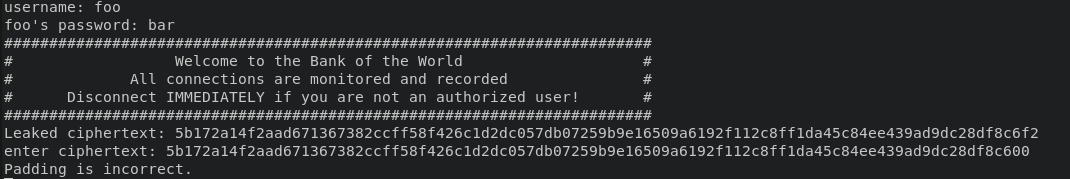

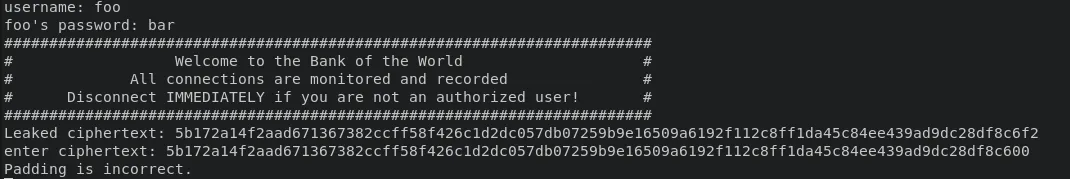

In order to check it, I replace the last byte of the leaked cipher with 0x00 and send it.
The app says Padding is incorrect, so the condition 3 is also satisfied, which means I can use padding oracle attack.
I will not explain how padding oracle attack works in this article because there are many useful articles in Internet.
I mainly read these articles below.
- Dotnet’s default AES mode is vulnerable to padding oracle attacks
- Padding Oracle AttackによるCBC modeの暗号文解読と改ざん (Japanese)
- Padding Oracle Attack 分かりやすく解説したい (Japanese)
There are 2 type of attacks in padding oracle attack.
- Decryption attack: An attacker exploits the padding oracle to decrypt a given ciphertext without knowing the encryption key by iteratively modifying and sending crafted ciphertexts to the oracle and observing its responses to reveal the original plaintext.
- Encryption attack: An attacker exploits the padding oracle to create a new ciphertext for a chosen plaintext without knowing the encryption key by leveraging their ability to decrypt any ciphertext and adjusting the plaintext accordingly, effectively encrypting a new message.
I use the encryption attack for this challenge.

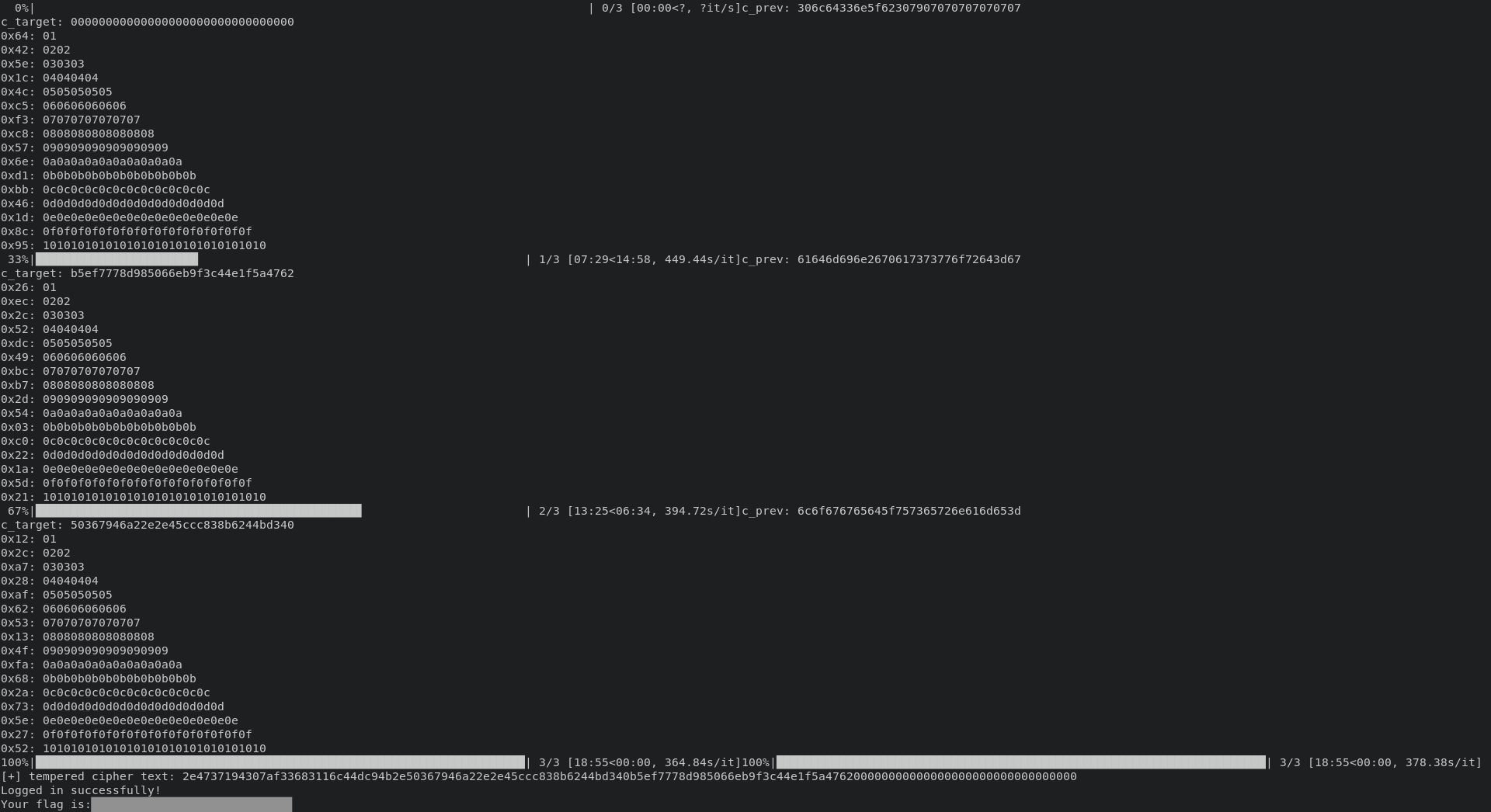

Exploit (Encryption Attack)
It’s time to exploit. The below python code is the exploit code. I refered to the implementation of the article.
from pwn import *
from tqdm import tqdm
from Crypto.Util.Padding import pad
from typing import List
context.log_level = 'error'
HOST = "46.101.81.60"
PORT = 31775
BLOCK_SIZE = 16
def is_valid_padding(c_target: str, dec_ci: bytearray, m_prime: int, c_prev_prime: int) -> bool:
"""
Check if the padding is valid through the app by chainging the ciphertext
:param c_target: The target ciphertext block as a hex string
:param dec_ci: Decrypted block (intermediate state) as a bytearray
:param m_prime: The byte position (1-indexed) being attacked in the current block
:param c_prev_prime: The modified byte value for the previous block's corresponding byte position
:return: boolean if the padding is valid
"""
r = remote(HOST, PORT)
# here username and password are not important because the leaked cipher text is not our concerns.
r.sendafter("username: ", "foo")
r.sendafter("password: ", "bar")
# ex. 00000000000000000046
attempt_byte = b"\x00" * (BLOCK_SIZE-m_prime) + p8(c_prev_prime)
adjusted_bytes = b""
for c in dec_ci:
adjusted_bytes += p8(c ^ m_prime)
r.sendafter("enter ciphertext: ", attempt_byte.hex() + adjusted_bytes.hex() + c_target)
res = r.recvall()
return "incorrect" not in res.decode()
def send_cipher(cipher_text: str):
r = remote(HOST, PORT)
r.sendafter("username: ", "admin")
r.sendafter("password: ", "g0ld3n_b0x")
r.sendafter("enter ciphertext: ", cipher_text)
res = r.recvall()
print(res.decode())
def create_cipher(plain_block: List[str], dec_block: List[str]) -> str:
"""
Creates a ciphertext by XORing corresponding plain and decrypted blocks, and appends a block of zeros.
:param plain_block: A list of plaintext block hex strings
:param dec_block: A list of decrypted block hex strings
:return: The resulting ciphertext as a hex string
"""
c0 = format(int(plain_block[0],16) ^ int(dec_block[2],16),'x').zfill(BLOCK_SIZE*2)
c1 = format(int(plain_block[1],16) ^ int(dec_block[1],16),'x').zfill(BLOCK_SIZE*2)
c2 = format(int(plain_block[2],16) ^ int(dec_block[0],16),'x').zfill(BLOCK_SIZE*2)
c3 = "00" * BLOCK_SIZE
return c0 + c1 + c2 + c3
def encryption_attack() -> str:
# initial Dec(ci) value. This value will be updated.
initial = "00" * BLOCK_SIZE
target_plain_text = "logged_username=admin&password=g0ld3n_b0y"
plain = pad(target_plain_text.encode(),16,style='pkcs7').hex()
plain_block = [plain[i: i+BLOCK_SIZE*2] for i in range(0, len(plain), BLOCK_SIZE*2)]
dec_block = [initial] * len(plain_block)
cipher_text = create_cipher(plain_block, dec_block)
cipher_text = cipher_text.zfill(len(cipher_text) + len(cipher_text) % BLOCK_SIZE*2)
# split cipher_text into ciphe_block by BLOCK_SIZE * 2
cipher_block = [cipher_text[i: i+BLOCK_SIZE*2] for i in range(0, len(cipher_text), BLOCK_SIZE*2)]
cipher_block.reverse()
for i in tqdm(range(len(cipher_block)-1)):
c_target = cipher_block[0]
c_prev = cipher_block[1]
print("c_prev: {}".format(c_prev))
print("c_target: {}".format(c_target))
cipher_block.pop(0)
m_prime = 1
c_prev_prime = 0
dec_ci = b"" # Dec(ci)
while True:
if is_valid_padding(c_target, dec_ci, m_prime, c_prev_prime):
print("0x{:02x}: ".format(c_prev_prime) + "{:02x}".format(m_prime) * m_prime)
dec_ci = p8(c_prev_prime ^ m_prime) + dec_ci
m_prime += 1
c_prev_prime = 0
if m_prime <= BLOCK_SIZE:
continue
break
c_prev_prime += 1
if c_prev_prime > 0xff:
print("Not Found")
break
dec_block[i] = dec_ci.hex().zfill(BLOCK_SIZE*2)
cipher_text = create_cipher(plain_block, dec_block)
cipher_block = [cipher_text[j: j+BLOCK_SIZE*2] for j in range(0, len(cipher_text), BLOCK_SIZE*2)]
cipher_block.reverse()
for _ in range(i+1):
cipher_block.pop(0)
tempered_cipher = create_cipher(plain_block, dec_block)
print("[+] tempered cipher text:", tempered_cipher)
return tempered_cipher
if __name__ == "__main__":
cipher_text = encryption_attack()
send_cipher(cipher_text)
Extra (Decryption attack)
A decryption attack could also work for this app. It took me some time to figure out how to decrypt the entire text because the app does not include the initial vector in the cipher text.
In the end, I realized that the initial vector could be calculated with the first decrypted block (dec_ci(1)). The idea is to run the decryption attack with a null IV, then calculate the XOR with the first decrypted block and the first block of the original plaintext. Since the app always uses the same initial vector, we can decrypt the entire text by performing the same attack again with the calculated initial vector.
The code below works as follows:
- Leak a ciphertext with the username “admin” and password “password.”
- Perform a decryption attack with a null initial vector to obtain the plaintext “logged_username=admin&password=password.”
- The first block cannot be decrypted properly. Calculate the initial vector from the first decrypted block (
dec_ci(1)). - Retry steps 1 and 2 with the initial vector calculated in step 3.
def get_leaked_cipher(username: str, password: str) -> str:
r = remote(HOST, PORT)
r.sendafter("username: ", username)
r.sendafter("password: ", password)
r.recvuntil("Leaked ciphertext:")
cipher = r.recvline().decode().strip().replace("\n", "")
r.sendafter("enter ciphertext: ", "random")
r.recvall()
return cipher
def decryption_attack(cipher_text: str, iv: bytearray = b"\x00" * BLOCK_SIZE) -> str:
"""
execute a decryption attack to decrypt a leacker cipher text and get the initial vector if the initial vector is unknown
:iv: initial vector. the default is null vector
:return: initial vector
"""
# plain text of the first cipher block
# it will be used to calculate the initial vector later
initial_block_plain = "logged_username="
cipher_text = iv.hex() + cipher_text.zfill(len(cipher_text) + len(cipher_text) % BLOCK_SIZE*2)
# split cipher_text into ciphe_block by BLOCK_SIZE * 2
cipher_block = [cipher_text[i: i+BLOCK_SIZE*2] for i in range(0, len(cipher_text), BLOCK_SIZE*2)]
# decrypt cipher_text from the last block
cipher_block.reverse()
plain_text = ""
block_length = len(cipher_block)
for i in tqdm(range(block_length-1)):
c_target = cipher_block[0]
c_prev = cipher_block[1]
print("c_prev: {}".format(c_prev))
print("c_target: {}".format(c_target))
cipher_block.pop(0)
m_prime = 1
c_prev_prime = 0
m = ""
dec_ci = b""
while True:
if is_valid_padding(c_target, dec_ci, m_prime, c_prev_prime):
print("0x{:02x}: ".format(c_prev_prime) + "{:02x}".format(m_prime) * m_prime)
# m = c' ^ m' ^ c
m += chr(c_prev_prime ^ m_prime ^ ord(bytes.fromhex(c_prev).decode('latin-1')[::-1][m_prime-1]))
dec_ci = p8(c_prev_prime ^ m_prime) + dec_ci
m_prime += 1
c_prev_prime = 0
if m_prime <= BLOCK_SIZE:
continue
break
c_prev_prime += 1
if c_prev_prime > 0xff:
print("Not Found")
break
dec_ci = dec_ci.hex().zfill(BLOCK_SIZE*2)
# calculate initial vector from the Dec(1)
if i == block_length - 2:
iv = xor(bytes.fromhex(dec_ci), initial_block_plain.encode())
print("[+] Dec({}): {}".format(len(cipher_block), dec_ci))
print("[+] m{}: {}".format(len(cipher_block), repr(m[::-1])))
plain_text = m[::-1] + plain_text
print("plain text: {}".format(plain_text))
print("initial vector: {}".format(iv.hex()))
return iv
if __name__ == "__main__":
cipher_text = get_leaked_cipher("admin", "password")
iv = decryption_attack(cipher_text)
decryption_attack(cipher_text, iv)As you can see the picture below, After the first attack, the first block of the decrypted text is broken, but the initial vector is found.
After the second attack with the initial vector, the text is properly decrypted.
